wmwAUC Test of No Group Discrimination

Performs the wmwAUC test of \(\mathrm{H_0\colon AUC} = 0.5\) based on the Wilcoxon-Mann-Whitney statistic.

Usage

wmwAUC_test(
  formula,
  data,
  ref_level = NULL,
  pvalue_method = c("EU", "BC"),
  alternative = c("two.sided", "greater", "less"),
  ci_method = "delong",
  conf_level = 0.95,
  pseudomedian = FALSE,
  n_grid = 1000,
  ...
)

Arguments

formula: Formula of the form response ~ group
data: Data frame containing continuous response variable and grouping factor
ref_level: Character, reference level of grouping factor (if NULL, uses first level)
pvalue_method: Character, method ('EU', 'BC') used for computing p-values (default 'EU')
alternative: Character, alternative hypothesis is c("two.sided", "greater", "less")
ci_method: Character, confidence interval method for eAUC: c('delong', 'boot', 'none')
conf_level: Numeric, confidence level for intervals (default 0.95)
pseudomedian: Logical; if TRUE, additionally reports the AUC-equalizing shift (pseudomedian) and its confidence interval (default FALSE)
n_grid: Numeric, number of grid points for search in wmwAUC_pseudomedian_ci() (default 1000)
...: Additional arguments passed to roc_with_ci()

Value

Object of class 'wmwAUC_test' containing:

pseudomedian_requested: Logical indicating whether the pseudomedian was computed
n: Named vector with components n1, n2 giving sample sizes for each group
U_statistic: U statistic
p_value: P-value for testing H0: AUC = 0.5
alternative: Alternative hypothesis specification
pvalue_method: Character string describing the test method
data_name: Character string giving the name of the data
pseudomedian: AUC-equalizing shift estimate (when pseudomedian = TRUE)
pseudomedian_conf_int: Confidence interval for AUC-equalizing shift (when pseudomedian = TRUE)
pseudomedian_conf_level: Confidence level for the pseudomedian interval (when pseudomedian = TRUE)
ci_method: Method used to compute confidence interval for AUC
roc_object: ROC analysis object returned by roc_with_ci()
auc: Empirical AUC (eAUC), the standardized U statistic
auc_conf_int: Confidence interval for true AUC using DeLong et al. or bootstrap method
x_vals: Numeric vector of observations from non-reference group
y_vals: Numeric vector of observations from reference group
groups: Character vector of group labels from original data
group_levels: Character vector of factor levels for grouping variable
group_ref_level: Character string indicating which level corresponds to reference group

Details

The function tests the null hypothesis \(\mathrm{H_0\colon AUC} = 0.5\) against \(\mathrm{H_1\colon AUC} \neq 0.5\), where AUC represents the Area Under the ROC Curve.

The Exact Unbiased ('EU') method is used by default for computing p-values. Bias-Corrected ('BC') method is available through pvalue_method = 'BC' and is markedly conservative at small or imbalanced sample sizes; EU is recommended unless BC's specific properties are wanted (see wmwAUC_pvalue_BC).

Following the convention of wilcox.test() AUC equals the probability \(P(X > Y)\) that a randomly selected observation from the first group exceeds a randomly selected observation from the second group. For response ~ group, observations from the non-reference group constitute \(X\), while observations from the reference group (specified by ref_level) constitute \(Y\). Thus AUC = P(non-reference > reference). If ref_level is not specified, the first factor level is used as reference. The \(U\)-statistic and the resulting empirical AUC (eAUC) are calculated consistently with this group assignment.

The test statistic is eAUC, which estimates the true AUC. The empirical ROC curve (eROC) is constructed by varying the classification threshold across all observed values and computing sensitivity and 1-specificity at each threshold.

When pseudomedian = TRUE, the function additionally reports the AUC-equalizing shift \(\delta\), defined as the value solving \(P(X < Y + \delta) = 0.5\); see wmwAUC_pseudomedian_ci for details.

Confidence intervals for the true AUC are computed using either the DeLong et al. (1988) structural-components method based on asymptotic normality, or bootstrap resampling. If bootstrap resampling is selected, it is also used for constructing the confidence band for the ROC curve.

This function can call two independent sources of randomness: bootstrap resampling (ci_method = 'boot'), and, when pseudomedian = TRUE with a small sample (n1 + n2 < 20), wmwAUC_pvalue_EU's Monte Carlo permutation fallback, called once per grid point inside wmwAUC_pseudomedian_ci. For reproducible results, call set.seed() immediately before wmwAUC_test() rather than relying on the ambient RNG state; a single seed covers both sources, since they draw from the same stream in a fixed order.

References

Grendar, M. (2025). Wilcoxon-Mann-Whitney test of no group discrimination. arXiv:2511.20308. (Full bibliography, including all methods and sources cited throughout this package, is given there.)

Examples

library('wmwAUC')
# \donttest{
library('gemR')
#>
#> Attaching package: ‘gemR’
#> The following object is masked from ‘package:stats’:
#>
#>     loadings
data(MS)
da <- MS
# preparing data frame
class(da$proteins) <- setdiff(class(da$proteins), "AsIs")
df <- as.data.frame(da$proteins)
df$MS <- da$MS
# wmwAUC test
wmd <- wmwAUC_test(P19099 ~ MS, data = df, ref_level = 'no')
wmd
#>
#>         wmwAUC Test of No Group Discrimination (H0: AUC = 1/2)
#>
#> data: P19099 by MS (n1 = 37, n2 = 64)
#> groups: yes vs no (reference)
#> U = 1726, eAUC = 0.729, p-value = 0.000012, method = EU
#> alternative hypothesis for AUC: two.sided
#> 95 percent confidence interval for AUC (delong):
#>  0.632 0.826
#>

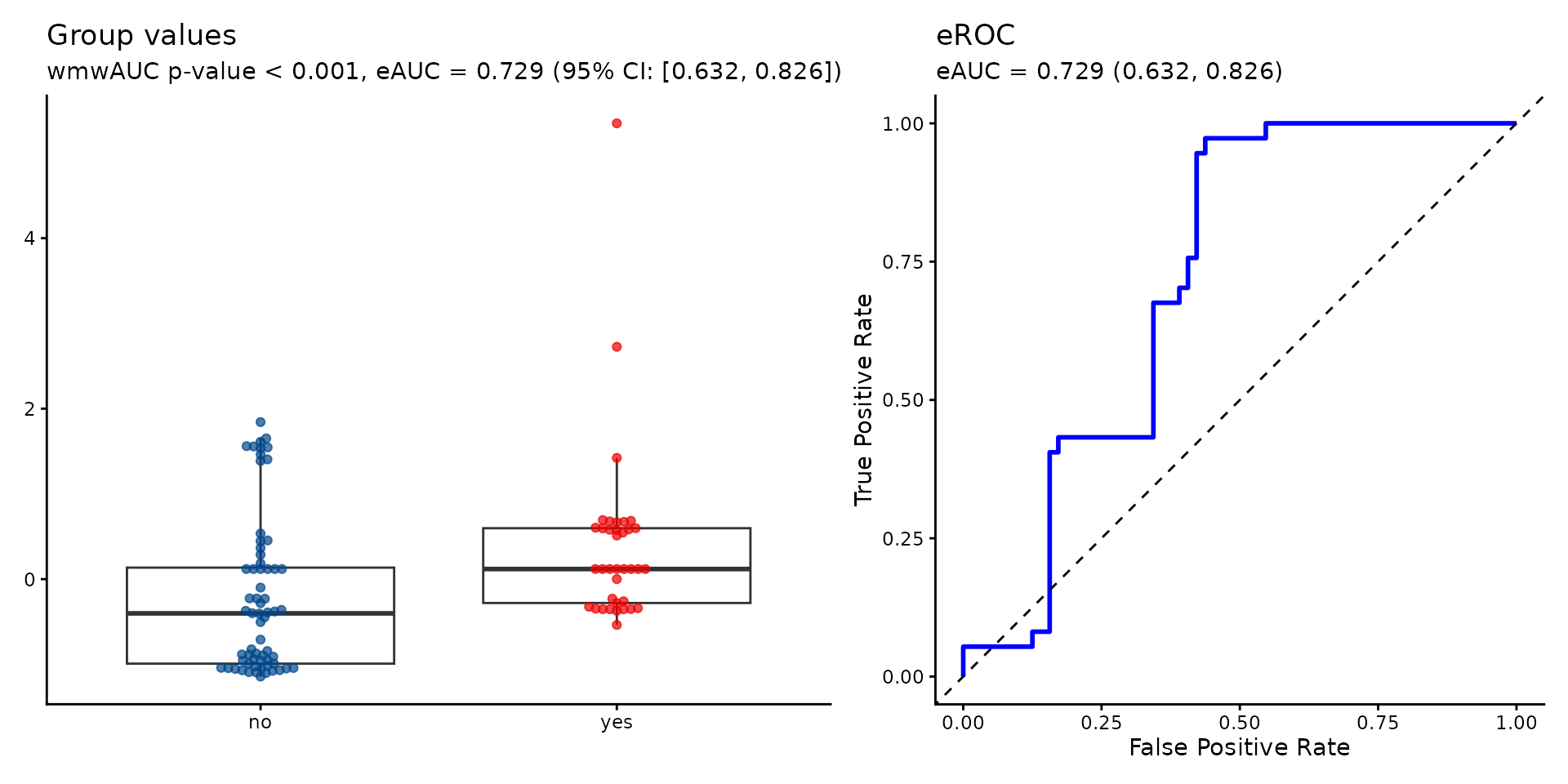

plot(wmd)

# compute pseudomedian
set.seed(123L)
wmd_pm <- wmwAUC_test(P19099 ~ MS, data = df, ref_level = 'no', pseudomedian = TRUE)
#> Warning: Large computational load detected: 37x64 = 2,368 kernel evaluations x 1000 grid points = 2,368,000 total computations. Consider reducing n_grid for faster execution.
wmd_pm
#>
#>         wmwAUC Test of No Group Discrimination (H0: AUC = 1/2)
#>
#> data: P19099 by MS (n1 = 37, n2 = 64)
#> groups: yes vs no (reference)
#> U = 1726, eAUC = 0.729, p-value = 0.000012, method = EU
#> alternative hypothesis for AUC: two.sided
#> 95 percent confidence interval for AUC (delong):
#>  0.632 0.826
#>
#> AUC-equalizing shift (pseudomedian):
#>  0.642 [solves P(X < Y + delta) = 0.5]
#> 95 percent confidence interval for the pseudomedian:
#>  0.465 0.934
#>
# compute confint for AUC by bootstrap
set.seed(123L)
wmd_ci_boot <- wmwAUC_test(P19099 ~ MS, data = df, ref_level = 'no', ci_method = 'boot')
wmd_ci_boot
#>
#>         wmwAUC Test of No Group Discrimination (H0: AUC = 1/2)
#>
#> data: P19099 by MS (n1 = 37, n2 = 64)
#> groups: yes vs no (reference)
#> U = 1726, eAUC = 0.729, p-value = 0.000012, method = EU
#> alternative hypothesis for AUC: two.sided
#> 95 percent confidence interval for AUC (boot):
#>  0.632 0.822
#>

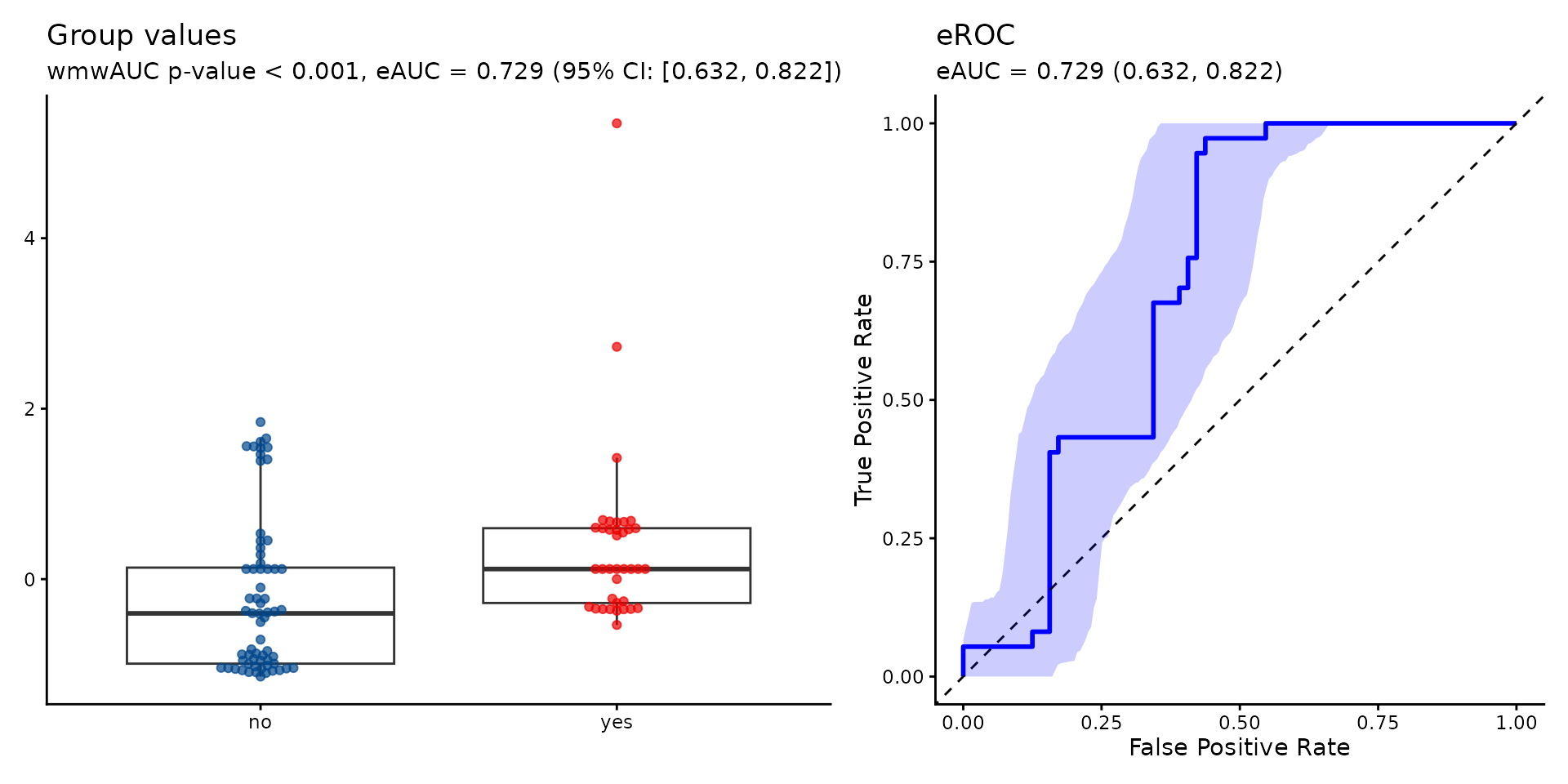

plot(wmd_ci_boot)

# BC method
wmd_bc <- wmwAUC_test(P19099 ~ MS, data = df, ref_level = 'no', pvalue_method = 'BC')
wmd_bc
#>
#>         wmwAUC Test of No Group Discrimination (H0: AUC = 1/2)
#>
#> data: P19099 by MS (n1 = 37, n2 = 64)
#> groups: yes vs no (reference)
#> U = 1726, eAUC = 0.729, p-value = 0.000960, method = BC
#> alternative hypothesis for AUC: two.sided
#> 95 percent confidence interval for AUC (delong):
#>  0.632 0.826
#>
# }
